1. Prepare the portable cabin for driving (see disconnecting). Move down the jockey wheel and move the support legs up.
2. Place the ball connection on the pull ball. Press the handle down and check that it is placed correctly (click sound).
3. Attach the safety wire to the car and put the power socket into the car's socket. Check that the lights are working correctly.
4. Move the jockey wheel up and release the handbrake. Check that there are no cables touching the ground.

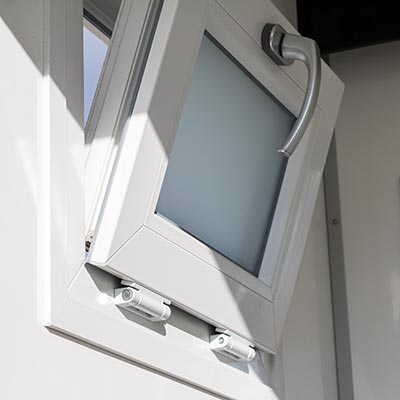

1. Close and lock cupboards, windows and doors. Secure any loose parts and place heavy objects over the axle.
2. Be aware that the cabin is sensitive to strong side winds. This also applies to wind that occurs when overtaking.
3. Shift down the gears ahead of time before sharp bends. Always keep a safe distance to the vehicle in front.
4. Never drive fast down a hill. Shift the gears down ahead of time so that the engine helps you brake.
1. Put the handbrake on and move the jockey wheel down. Remove the electrical socket and safety wire. Then release the cabin.
2. On soft ground, place plates under the support legs. On sloping ground, place wedges in front or behind the wheels.
3. Move the support legs down so the cabin is horizontal. The angle on the legs should be at least 45 degrees from the cabin.
4. Move the jockey wheel up and release the handbrake. If it is left for a long time, the brake shoes can get stuck.
1. Turn off the water heater by turning the thermostat to zero. (It must not be switched on without water).
2. Find the electrical inlet. It will be in the technical compartment or on the side of the chassis under the cabin.
3. Connect the power cable and turn on all switches. If the cabin has a macerator pump, connect it and switch it on.
4. If the cabin has a battery, it will be charged automatically when connected.

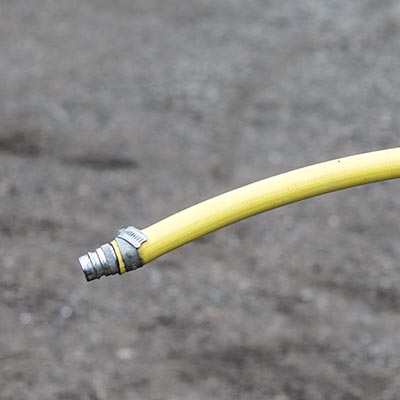

1. First, rinse the hose with water to ensure no dirt enters the water installation.
2. Find the water inlet. It will be in the technical compartment or on the side of the chassis under the cabin.
3. Connect the water hose and close all drain cock valves. Turn on the water and then the main tap.
4. If the cabin has a water tank you can fill the tank or connect the water directly to an external water supply.
1. For cabins with a macerator pump use a 1' hose. For cabins without a macerator pump use a 110 mm Ø pipe.
2. Find the sewage inlet. It will be in the technical compartment or on the side of the chassis under the cabin.
3. Connect the hose/sewage pipe. If the toilet has a macerator pump, remember to connect it and turn it on.
4. If the cabin has a sewage tank you can fill the tank or connect directly to an external sewer system.
1. First, turn off the water heater and disconnect the water supply. (It must not be switched on without water)
2. Empty all toilets by flushing them one last time. Then disconnect the sewage connection.
3. Empty the water heater and hoses by opening all the drain cocks valves and the pressure relief valve on the water heater.
4. Finish by disconnecting the power cable. Remember to clean the cabin if you have rented it.
1. First, turn off the water heater and disconnect the water supply. (It must not be switched on without water)
2. Empty all toilets by flushing them one last time. Then disconnect the sewage connection.
3. Open all faucets and showers. Mixer faucets must be removed and emptied using air pressure.
4. Empty the water heater and hoses by opening all the drain cocks valves and the pressure relief valve on the water heater.
1. Pour a little antifreeze in all sinks, toilets and drains.
2. Finish by disconnecting the power cable. Remember to clean the cabin if you have rented it.
3. NB: Leave the heating on in the cabin and the technical compartment for as long as the cabin is in use.
4. NB: Make sure ventilate at least once a day to reduce moisture in the cabin.
The wheel rims must be tightened with a pressure of 90 Nm (9 kilo). Pump the tyres according to tyre description.
Use a grease gun to lubricate the 3 grease nipples on the overrun brake and jockey wheel. Use a spray or cloth to lubricate the 4 spindles for the support legs.
1. There must not be any people in the cabin during driving.
2. There must not be any loose parts in the cabin during driving.
3. Close and lock cupboards, windows and doors.
4. Make sure any heavy objects are placed in the centre above the axle while driving.
5. Make sure that the electrical cable that connects the cabin to the car does not touch the ground while driving.
6. Screw the support legs down so that the angle form the cabin is at least 45 degrees. They are only for support and cannot carry the cabin.
7. 230V plugs must not be loaded with more than 2200 W.
8. Do not cover heat sources to reduce fire risk.
9. Do not throw sanitary towels or similar into the toilets as it can block them and damage the waste disposal unit.
10. Never use scouring agents or strong cleaning fluids.
11. Only use mild detergent solution.
